Cloud infrastructure for mobile apps controls what happens after a user taps a button. It authenticates the account, processes the request, applies business rules, stores or retrieves data, calls external services, and returns a response to the device.
Users never see most of this infrastructure, but they experience its quality through login speed, payment reliability, real-time updates, and application availability.
The best architecture is not the one with the most cloud services. It is the simplest design that can support the product’s current responsibilities, security requirements, and realistic growth without becoming expensive to operate or difficult to change.
A dependable mobile cloud architecture should:
- Keep sensitive business rules on the server.
- Expose controlled and versioned APIs.
- Separate authentication from authorization.
- Assign clear ownership to every data type.
- Support slow, repeated, and interrupted mobile requests.
- Move non-urgent work into background processing.
- Monitor user outcomes as well as infrastructure.
- Test backups and recovery before launch.
- Introduce scaling complexity only when measurements justify it.
- Track cloud cost by product, environment, and workload.
Managed services can reduce infrastructure work, but they do not remove responsibility for access control, data design, performance, monitoring, or recovery.
Definition: Cloud infrastructure for mobile apps is the combination of APIs, computing services, databases, identity systems, storage, networking, security controls, and operational tools that support a mobile product beyond the user’s device.
How Mobile App Cloud Infrastructure Works
A mobile request normally passes through several controlled layers before the user receives a result.

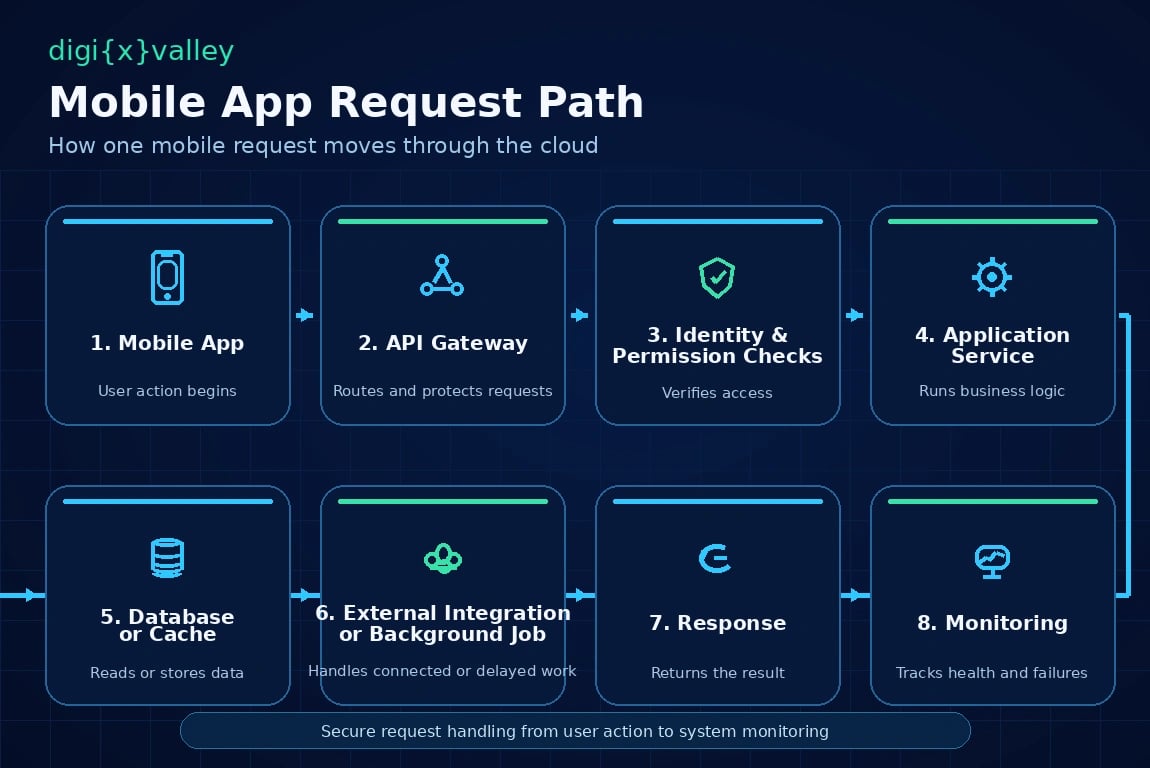

A simplified request path looks like this:
Consider a customer confirming a delivery order:
- The mobile app sends an authenticated request.
- The API layer validates its structure and traffic limits.
- The backend checks the user’s identity and permissions.
- The order service verifies availability and calculates the final amount.
- A database records the order.
- A payment provider processes the transaction.
- Background jobs notify the merchant, driver, and customer.
- Monitoring records whether each stage succeeded.
- The mobile app receives the confirmed status.
AWS recommends separating backend business functionality from mobile clients and exposing that functionality through APIs. This reduces client-side responsibility and allows the same backend capabilities to support multiple applications.
This is why mobile app development should be planned together with backend architecture rather than treating the app interface and cloud platform as separate projects.
The Core Components of a Mobile Cloud Backend
A production mobile backend usually includes several connected components. Some platforms combine them, but their responsibilities still need to be understood.
API and Traffic Management
The API layer provides the controlled entry point into the platform.
Its responsibilities may include:
- Request routing
- Input validation
- Rate limiting
- API versioning
- Authentication enforcement
- Load balancing
- Response caching
- Usage analytics
- Abuse prevention
REST remains a practical choice for many transactional workflows. GraphQL can help when mobile, web, and administrative clients need different combinations of the same data. WebSockets or managed real-time services may suit chat, collaboration, location tracking, and live-status features.
An API gateway should handle cross-cutting controls without becoming another place for complex business logic. Microsoft’s API guidance covers versioning, idempotent operations, and loose coupling as important considerations for maintainable API design.
Authentication and Authorisation
These two responsibilities are related but different:
- Authentication confirms who is making the request.
- Authorization determines what that person or service may do.
A user may be signed in correctly but still lack permission to view another account, approve a refund, or access an organization’s records.
Managed identity products can support password, phone, and federated login methods, but the backend must still enforce ownership, role, and tenant-level permissions. Firebase Authentication, Azure App Service, and AWS Amplify all provide managed identity capabilities, but each application remains responsible for applying the correct access model.
Application Services
Application services execute the product’s rules.
They may calculate or validate:
- Prices and fees
- Subscription access
- Inventory availability
- Booking conflicts
- Delivery assignments
- Commissions
- Eligibility
- Approval status
- Refund conditions
Critical rules should not live only inside the mobile application. A modified, outdated, or compromised client must not be able to bypass server-side decisions.
Databases, Caches and Storage
Most applications use more than one form of storage:
- Relational databases for connected and transactional records
- Document databases for flexible data structures
- Key-value stores for rapid lookups
- Caches for frequently reused information
- Search indexes for text discovery
- Object storage for images, documents, and video
- Analytical storage for reporting
The goal is not to use every database type. Each added data system creates another copy that must be secured, monitored, backed up, and kept consistent.
Background Processing
Slow or unreliable work should not block the mobile user’s request.
Queues and background workers can handle the following:
- Push notifications
- Image processing
- Report generation
- Search-index updates
- Integration retries
- Fraud checks
- AI processing
- Data exports
The API can confirm that work has been accepted while the slower task continues safely in the background.
Monitoring and Operations
The operations layer makes the platform understandable after deployment.
It includes:
- Logs
- Metrics
- Distributed traces
- Alerts
- Deployment pipelines
- Infrastructure as code
- Backups
- Cost reports
- Incident procedures
Google Cloud recommends designing applications for both scalability and resilience rather than treating them as unrelated concerns.
Which Cloud Delivery Model Should You Choose?
The correct model depends on control requirements, product complexity, team experience, and the cost of operating the platform.
Delivery Model | Strong Fit | Main Limitation |
Backend-as-a-Service | Prototypes and standard MVPs | Platform restrictions and dependency |
Serverless functions | Events and unpredictable workloads | Distributed debugging and execution limits |
Managed application platform | Less infrastructure control | |
Containers | Custom runtimes and portable workloads | Higher operational responsibility |
Virtual machines | Legacy or specialist workloads | Manual management overhead |
Microservices | Large domains with independent teams | Distributed-system complexity |
Backend-as-a-Service
A BaaS can provide authentication, databases, storage, server-side functions, and notifications without a team managing servers directly.
It works well when:
- The MVP uses common workflows.
- Delivery speed is more important than infrastructure control.
- The initial team is small.
- Traffic is uncertain.
- Cloud infrastructure is not the main product differentiator.
Google describes BaaS as a managed backend model that may include authentication, databases, storage, hosting, and push notifications.
Before choosing one, review data-export options, query limits, regional availability, authentication portability, pricing behavior, and migration effort.
Serverless Architecture
Serverless can be effective for API endpoints, scheduled work, and event-driven tasks.
However, the team must still design the following:
- Function boundaries
- Permissions
- Retries
- Timeouts
- Idempotency
- Logging
- Cost limits
- Failure handling
Serverless removes server management. It does not remove architectural responsibility.
Managed Platforms and Containers
A managed application platform can host APIs without requiring a team to manage operating systems or clusters. Azure App Service, for example, supports mobile backends and REST APIs on a managed hosting platform.
Containers offer more runtime control and portability, but they also introduce responsibilities around orchestration, networking, deployment, and observability.
Microservices
Microservices should solve a measurable problem rather than signal technical maturity.
They become more reasonable when:
- Different teams own separate business domains.
- One capability requires independent scaling.
- Release cycles must be separated.
- Failure isolation has business value.
- Services require meaningfully different runtime environments.
For many new mobile products, a modular monolith is easier to test, deploy, and operate.
AWS, Azure, Google Cloud, Firebase or Supabase?
No provider is universally best. The strongest option is the one that fits the product, team, and operating model.
Platform | Suitable for | Important consideration |
AWS | Broad service choice, serverless systems, and custom platforms | Architecture and cost governance can become complex |
Microsoft Azure | Microsoft environments, enterprise identity and managed APIs | Service-tier and configuration decisions require planning |
Google Cloud | Managed data services, analytics, and scalable application workloads | Best results depend on team familiarity with its ecosystem |
Firebase | Fast mobile MVPs, authentication, real-time data, and offline support | Data modelling, query limits and provider dependency |
Supabase | PostgreSQL-based applications requiring authentication and real-time features | Row-level security and migration planning need careful design |
AWS Amplify | Mobile products are already aligned with AWS services | Strong AWS coupling may increase future migration effort |
Firebase provides managed authentication, real-time databases, and offline-capable Firestore clients. Supabase combines PostgreSQL, authentication, storage, and real-time services, while AWS Amplify offers mobile-oriented authentication, data, storage, and notification capabilities.
The provider should be selected after defining workflows and constraints, not before.
Designing APIs for Real Mobile Conditions
Mobile APIs must work with unreliable networks, delayed responses, and users running old app versions.
Protect Against Repeated Requests
A server may complete an order while the user’s connection drops before confirmation reaches the device. The app may then repeat the same request.
Use idempotency controls for operations such as the following:
- Payments
- Orders
- Reservations
- Refunds
- Subscription changes
- Account creation
A repeated request should return the previous result or continue safely rather than create a duplicate action.
Keep Old App Versions Working
Users do not update mobile applications immediately.
Define:
- Minimum supported version
- API compatibility period
- Deprecation process
- Forced-update conditions
- Feature-flag strategy
- Migration messaging
Breaking an endpoint without a compatibility period can disable active installations.
Use a Backend for Frontend When Necessary
A mobile app may need smaller payloads and fewer network calls than a desktop administration portal.
A backend for a frontend can expose client-specific APIs while keeping the underlying services shared. Microsoft and AWS both describe this pattern as useful when mobile and web clients have different interaction and data requirements.
This is particularly useful when web application development must support administrators, partners, or operations teams alongside the mobile app.
Selecting the Right Mobile App Database
The database design should follow transactions, relationships, query patterns, and consistency requirements.
Requirement | Practical Starting Direction |
Orders, payments and reservations | Relational database |
Flexible content records | Document database |
Rapid key-based lookups | Key-value database |
Temporary repeated data | Cache |
Complex text search | Search engine |
Images, files and video | Object storage |
Historical reporting | Analytical warehouse |
Relational Databases
PostgreSQL, MySQL, and similar databases remain strong choices for:
- Financial records
- Connected entities
- Transactions
- Reporting
- Referential integrity
- Complex queries
A mobile product does not need to be an enterprise system to benefit from relational consistency.
NoSQL Databases
Document and key-value databases may suit workloads that require flexible records, high throughput, or particular distribution patterns.
However, flexible schemas do not eliminate the need for data modeling. Poor keys, duplicated records, and uncontrolled query patterns can create cost and performance problems.
Build a State Ownership Map
Every important record should have one authoritative owner.
Data Type | System of Record |
User identity | Identity provider |
Customer profile | Application database |
Payment confirmation | Payment provider and internal ledger |
Subscription access | Subscription service |
Uploaded files | Object storage |
Searchable content copy | Search index |
Analytics event | Analytics platform |
Without this map, two systems may silently become competing sources of truth.
Mobile Push Notification Infrastructure
Push notifications are part of the cloud architecture, not merely a mobile interface feature.
The Apple Push Notification service delivers remote notifications to Apple devices, while Firebase Cloud Messaging supports messaging to Android, Apple, and other client applications.
A reliable notification design should manage the following:
- User permission status
- Device registration tokens
- Token refresh and expiry
- User communication preferences
- Deep links
- Retry behaviour
- Delivery failures
- Uninstall and inactive-device cleanup
- Sensitive information shown on locked screens
FCM advises maintaining current registration information and removing stale tokens rather than continuing to send messages to inactive installations. Its server guidance also requires secure storage of credentials and registration data.
Notifications should not be treated as a guaranteed event-delivery system. The application database should remain the source of truth for important status changes.
Scaling Without Premature Complexity
Scaling should follow measurements, not predictions.
The Scale-Evidence Ladder
Use this sequence before redesigning the entire platform:
- Measure response time, throughput, and failure rates.
- Profile slow application logic.
- Review database queries.
- Add appropriate indexes.
- Paginate large responses.
- Cache repeated work.
- Move slow tasks into background processing.
- Increase component capacity.
- Add horizontal replicas and load balancing.
- Separate only services that need independent scaling.
- Partition data only when evidence supports it.
This approach avoids both underengineering and unnecessary distributed-system complexity.
Vertical Scaling
Vertical scaling gives one service more CPU, memory, or storage. It is simple, but it eventually reaches platform or cost limits.
Horizontal Scaling
Horizontal scaling adds service instances. It works best when application services are stateless and shared state remains in databases, caches, or queues.
Autoscaling
Autoscaling should respond to meaningful signals such as the following:
- Request volume
- Queue depth
- Processing latency
- Concurrent connections
- CPU or memory pressure
Scaling on the wrong signal may increase cost without improving the user experience.
Multi-Tenant Architecture for SaaS and Enterprise Apps
A mobile SaaS product may serve several companies, clinics, stores, teams, or franchises through the same platform.
The architecture must define how each tenant is identified and isolated.
Common approaches include:
Model | Benefit | Trade-off |
Shared database and shared tables | Lower cost and simpler operations | Strong filtering and row-level controls required |
Shared database with separate schemas | Better logical separation | More migration and management work |
Separate database per tenant | Stronger isolation and customisation | Higher operational cost |
Hybrid model | Different isolation levels by customer type | More routing and provisioning complexity |
AWS identifies tenant identity, data isolation, runtime, and operations as central building blocks of multitenant systems. Azure also notes that the tenancy model affects data architecture, isolation, and future migration costs.
Tenant isolation must be enforced by backend policies. Adding a tenant_id column without reliable authorisation checks is not sufficient.
Every Scalable Mobile App Starts With the Right Foundation
Reliability, Security and Observability
Availability alone does not prove that the application is working correctly.
A server may be online while login, checkout, or booking workflows are failing.
Track technical and business signals together:
Technical Signal | Business Signal |
API latency | Completed checkout rate |
Error rate | Failed reservations |
Database performance | Missing profile updates |
Queue delay | Late notifications |
Authentication failures | Users unable to sign in |
Integration status | Unconfirmed payments |
Cloud usage | Cost per active user |
Backups and Recovery
Define two business requirements:
- Recovery Time Objective: How long can the service remain unavailable?
- Recovery Point Objective: How much recent data can be lost?
A practical recovery plan may include:
- Automated backups
- Point-in-time recovery
- Multi-zone services
- Restore testing
- Infrastructure-as-code templates
- Incident procedures
- Status communication
- Rollback plans
A backup that has never been restored successfully is not a proven recovery system.
Security Controls
Important cloud security controls include:
- Encryption in transit
- Encryption at rest where appropriate
- Least-privilege access
- Secrets management
- Server-side input validation
- API rate limits
- Audit logging
- Dependency updates
- Environment separation
- Incident response
Privileged database, cloud, and API credentials should never be embedded in the mobile application.
Cloud Infrastructure Cost and Timeline
Costs depend on roles, integrations, compliance, traffic, storage, real-time activity, and recovery requirements.
The following figures are illustrative Digixvalley planning ranges, not fixed quotations or cloud-provider prices.
Development Cost
Infrastructure Scope | Estimated Build Cost | Typical Timeline |
BaaS-backed prototype | £12,000–£25,000 | 4–8 weeks |
Focused production MVP backend | £25,000–£55,000 | 8–14 weeks |
Custom multi-role backend | £55,000–£110,000 | 3–6 months |
High-scale or regulated platform | £110,000–£200,000+ | 6–12 months |
Complex multi-region environment | Tailored estimate | Based on requirements |
These estimates may exclude the mobile interface, extensive data migration, specialist compliance work, and third-party licenses.
Illustrative Monthly Cloud Operations
Usage Scenario | Possible Monthly Range |
Early MVP with limited traffic | £100–£600 |
Growing applications with active APIs and storage | £600–£3,000 |
Multi-role platform with monitoring and integrations | £3,000–£12,000 |
High-volume, media-heavy, or multi-region platform | £12,000+ |
Actual spend can vary widely because one active user streaming video or running AI workloads may consume more infrastructure than hundreds of users performing simple database operations.
The Four Cloud Budgets
A complete financial plan should separate:
- Build budget: Architecture, APIs, databases, integrations, and testing.
- Run budget: Compute, data, networking, monitoring, and support.
- Change budget: New features, migrations, and optimization.
- Failure budget: Redundancy, recovery testing, and incident response.
A cheap initial build may create high change and failure costs when data design, monitoring, and recovery are postponed.
A Practical Development Process
A strong infrastructure program begins with product workflows, not a catalog of cloud services.
1. Map User and Operational Workflows
Document the journeys of customers, administrators, partners, and connected systems.
2. Define Non-Functional Requirements
Agree on performance, expected traffic, availability, data sensitivity, recovery, and target regions.
3. Design Data Ownership
Define entities, relationships, retention rules, and systems of record.
4. Select the Delivery Model
Choose BaaS, serverless, PaaS, managed platforms, or containers according to evidence.
5. Design API Contracts
Specify requests, responses, permissions, errors, versions, and duplicate-request handling.
6. Build the Cloud Foundation
Create environments, identity controls, storage, databases, secrets, deployment pipelines, and monitoring.
7. Develop and Integrate
Implement product logic, APIs, background tasks, and third-party connections through appropriate backend development services.
8. Test Real Failure Conditions
Test load spikes, expired sessions, repeated payments, integration timeouts, queue delays, and database restoration.
9. Launch Gradually
Use feature flags, controlled traffic, dashboards, and rollback procedures.
10. Improve From Real Evidence
Optimize based on production traffic, cost, and failure patterns.
Cloud Infrastructure Risks and Trade-Offs
Every architecture choice creates benefits and limitations.
Managed Services Create Dependency
Managed products reduce operational effort but may introduce proprietary APIs, pricing dependency, regional restrictions, and migration work.
Microservices Add Failure Paths
Each new service adds deployment, networking, monitoring, and data-consistency responsibilities.
Autoscaling Can Multiply Waste
A defective loop, abusive client, or poor query may trigger additional resources without delivering more customer value.
Multi-Cloud May Reduce Clarity
Using several providers can reduce one’s dependency while increasing identity, networking, deployment, and operational complexity.
More Data Copies Increase Governance Risk
Caches, analytics systems, search indexes, and backups may each hold user information. Retention and deletion requirements must include every copy.
How Digixvalley Approaches Mobile Cloud Architecture
Digixvalley treats cloud infrastructure as part of the product rather than a hosting task completed after the mobile interface.
The planning process may cover:
- API architecture
- Database modelling
- Authentication and permissions
- Cloud deployment
- Third-party integrations
- Real-time workflows
- Push notifications
- Monitoring and alerting
- Backup and recovery
- Performance testing
- Cloud cost controls
- Post-launch optimisation
Digixvalley’s public software development case studies include products involving bookings, live tracking, remote consultations, secure messaging, notifications, and multi-role operational workflows.
The recommended architecture should support the current product without locking the organization into unnecessary technical complexity.
Final Takeaway
Cloud infrastructure for mobile apps should make the product dependable, secure, and easier to change.
The strongest platforms:
- Keep critical rules on the backend.
- Use controlled and versioned APIs.
- Separate authentication from authorization.
- Give every data type a clear owner.
- Support repeated and interrupted mobile requests.
- Manage notification tokens and preferences.
- Isolate tenant information correctly.
- Monitor business workflows as well as servers.
- Test restoration and failure procedures.
- Scale measured bottlenecks.
- Track build, run, change, and failure costs.
The objective is not to predict every future requirement. It is to build an architecture that handles today’s responsibilities correctly while preserving a practical route to future growth.
Plan Your Mobile Cloud Architecture
FAQs
What is cloud infrastructure for mobile apps?
It is the collection of APIs, computing services, databases, identity systems, storage, networking, and monitoring tools that support an application outside the user’s device.
Does every mobile app require cloud infrastructure?
No. A simple offline app may not need a backend. Cloud infrastructure is normally required for user accounts, shared information, payments, notifications, administration, or third-party integrations.
Which cloud provider is best for a mobile app?
There is no universal winner. The decision depends on product workflows, team skills, required regions, security, existing systems, expected traffic, and migration needs.
Should an MVP use Firebase or a custom backend?
Firebase may suit an MVP with standard authentication and real-time data requirements. A custom backend is more suitable when the product requires complex permissions, transactions, integrations, or portability.
Is serverless suitable for mobile apps?
Serverless works well for event-driven tasks, APIs, and uncertain traffic. It may be less suitable for long-running work, specialist runtimes, or sustained workloads requiring predictable resource control.
Which database should a mobile app use?
Relational databases are a strong default for transactions and connected business information. Document and key-value databases may suit specific flexible or high-throughput access patterns.
How should mobile authentication be secured?
Use a trusted identity provider, short-lived sessions, secure recovery, optional multi-factor authentication, and server-side permission checks. Do not store privileged credentials inside the app.
How does a mobile backend scale?
It normally scales through code and query optimization, indexing, caching, background processing, larger resources, horizontal replicas, and selective service separation.
How much does mobile cloud infrastructure cost?
A BaaS-backed prototype may cost approximately £12,000–£25,000 to build. Custom production backends may range from £25,000 to more than £110,000 depending on features, integrations, security, and scaling requirements.
What should be monitored after launch?
Monitor latency, errors, database performance, queue delays, authentication, external integrations, cloud spend, and important workflows such as payments, bookings, or deliveries.
Can a mobile backend be migrated later?
Yes, but effort increases when the product depends heavily on proprietary databases, identity systems, functions, or provider-specific APIs.
